Chapter 31: Elliptic Curves and the Group Law (SageMath)#
Python Version Available
This notebook contains the SageMath implementation of Chapter 31, using native EllipticCurve, PolynomialRing, and built-in algebraic geometry. A pure Python/NumPy version is available in Chapter 31: Elliptic Curves and the Group Law.
31.1 Historical Background#
The application of elliptic curves to cryptography emerged from two independent proposals in the mid-1980s:
In 1985, Victor Miller presented the idea of using the group of rational points on an elliptic curve over a finite field as the basis for a public-key cryptosystem at a crypto conference, with the paper appearing in 1986.
In 1987, Neal Koblitz independently proposed essentially the same idea, publishing in Mathematics of Computation.
Both recognized a key insight: the discrete logarithm problem on an elliptic curve group appeared to be significantly harder than the corresponding problem in the multiplicative group of a finite field. This meant that the same level of security could be achieved with dramatically smaller key sizes. For example, a 256-bit elliptic curve key provides roughly the same security as a 3072-bit RSA key.
Elliptic curves had been studied as abstract mathematical objects for over a century – by Weierstrass, Mordell, Weil, and many others – but their application to practical cryptography was revolutionary. Today, Elliptic Curve Cryptography (ECC) underpins TLS 1.3, Bitcoin, Signal, and numerous other protocols.
Note
This chapter focuses on the mathematics of elliptic curves: defining the group law, implementing arithmetic over finite fields, and verifying the group axioms computationally. Cryptographic protocols built on these foundations (ECDH, ECDSA, etc.) are treated in later chapters.
31.2 The Weierstrass Equation#

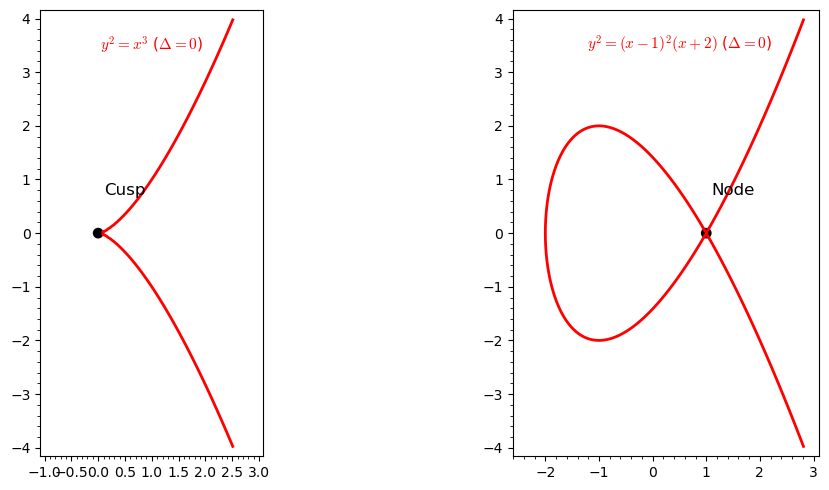

The discriminant condition \(\Delta \neq 0\) ensures the cubic \(x^3 + ax + b\) has no repeated roots, which is equivalent to the curve having no cusps or self-intersections. When \(\Delta = 0\), the curve degenerates into a singular curve that does not carry a group structure in the usual sense.
Over the real numbers \(\mathbb{R}\), elliptic curves appear as smooth plane curves. Over a finite field \(\mathbb{F}_p\), the “curve” is a discrete set of points. In both cases, the same algebraic formulas define the group operation.
# Plot y^2 = x^3 + ax + b over the reals for several parameter choices
# SageMath's EllipticCurve provides a native .plot() method
curves_params = [(-1, 0), (0, 1), (-2, 2)]
titles = [r"$y^2 = x^3 - x$", r"$y^2 = x^3 + 1$", r"$y^2 = x^3 - 2x + 2$"]
plots = []
for (a_coeff, b_coeff), title in zip(curves_params, titles):
E = EllipticCurve(QQ, [a_coeff, b_coeff])
disc = E.discriminant()
p = E.plot(xmin=-3, xmax=3, ymin=-5, ymax=5)
p += text(title, (0, 4.5), fontsize=12, color='black')
p += text(r"$\Delta = %s$" % disc, (-1.5, -4), fontsize=10, color='brown')
plots.append(p)
show(graphics_array(plots, nrows=1, ncols=3), figsize=[14, 4.5])
31.3 The Group Law: Point Addition#
The remarkable fact about elliptic curves is that their points form an abelian group under a geometric operation called “point addition.”
# Geometric illustration of point addition on y^2 = x^3 - 2x + 2
E = EllipticCurve(QQ, [-2, 2])
# Choose two points on the curve (work numerically for the plot)
a_coeff, b_coeff = -2, 2
x1_val = -1.0
y1_val = sqrt(RR(x1_val^3 + a_coeff*x1_val + b_coeff))
x2_val = 1.5
y2_val = sqrt(RR(x2_val^3 + a_coeff*x2_val + b_coeff))
# Compute the addition geometrically
lam = (y2_val - y1_val) / (x2_val - x1_val)
x3_val = lam^2 - x1_val - x2_val
y3_intersect = lam*(x1_val - x3_val) - y1_val # P+Q y-coordinate
y3_third = -y3_intersect # third intersection point (before reflection)
# Build the plot
p = E.plot(xmin=-2.0, xmax=3.5, ymin=-5, ymax=5, color='blue', thickness=2)
# Secant line through P and Q
t = var('t')
p += parametric_plot((t, lam*(t - x1_val) + y1_val), (t, -2, 3.5),
color='red', linestyle='dashed', thickness=1.2)
# Vertical reflection line
p += line([(x3_val, y3_third), (x3_val, y3_intersect)],
color='green', linestyle='dashed', thickness=1.2)
# Plot points P, Q, R', P+Q
p += point([(x1_val, y1_val)], color='red', size=60, zorder=5)
p += text("$P$", (x1_val - 0.3, y1_val + 0.4), fontsize=14, color='red')
p += point([(x2_val, y2_val)], color='green', size=60, zorder=5)
p += text("$Q$", (x2_val + 0.25, y2_val + 0.3), fontsize=14, color='green')
p += point([(x3_val, y3_third)], color='black', size=50, zorder=5)
p += text("$R'$", (x3_val + 0.3, y3_third - 0.4), fontsize=13, color='black')
p += point([(x3_val, y3_intersect)], color='purple', size=80, zorder=5, marker='^')
p += text("$P+Q$", (x3_val + 0.35, y3_intersect + 0.4), fontsize=14, color='purple')
p.axes_labels(['$x$', '$y$'])
show(p, figsize=[7, 7], title="Point Addition on an Elliptic Curve")
print(f"P = ({float(x1_val):.4f}, {float(y1_val):.4f})")
print(f"Q = ({float(x2_val):.4f}, {float(y2_val):.4f})")
print(f"P + Q = ({float(x3_val):.4f}, {float(y3_intersect):.4f})")
P = (-1.0000, 1.7321)
Q = (1.5000, 1.5411)
P + Q = (-0.4942, -1.6934)
31.4 The Group Structure#
Closure and commutativity are relatively straightforward from the addition formulas. The identity and inverse properties follow from the definitions. Associativity is the hardest to prove – it requires a careful algebraic verification (or an argument via the Riemann-Roch theorem). We will verify it computationally in Section 31.11.
31.5 Symbolic Addition Formulas with SageMath#
One of the most elegant features of SageMath is its ability to derive the addition formulas symbolically. Rather than implementing the chord-and-tangent formulas by hand, we define a generic elliptic curve over a quotient ring and let SageMath compute the formulas for us.
Note
This approach uses PolynomialRing, ideal(), and quotient_ring() to work in the ring where \(y_1^2 = x_1^3 + ax_1 + b\) and \(y_2^2 = x_2^3 + ax_2 + b\) are identities. The resulting addition expressions are the general formulas valid for any elliptic curve in short Weierstrass form.
#some technical setup
R.<x1,y1,x2,y2,a,b> = PolynomialRing(QQ, 'x1,y1,x2,y2,a,b')
Ideal1 = ideal(y1^2-(x1^3+a*x1+b),y2^2-(x2^3+a*x2+b))
Rquot.<X1,Y1,X2,Y2,A,B>=R.quotient_ring(Ideal1)
Fquot=Rquot.fraction_field()
E=EllipticCurve(Fquot,[A,B]);
#two abstract points on the curve E
P=E.point([X1,Y1])
Q=E.point([X2,Y2])
P
(X1 : Y1 : 1)
Q
(X2 : Y2 : 1)
#addition of two distinct points
pretty_print(P+Q)
#doubling formula for a point P
pretty_print(2*P)
#opposite of a point
pretty_print(-P)
#triplication formula of a point P
pretty_print(3*P)
The Power of Symbolic Computation
Notice that SageMath derives the full addition, doubling, negation, and triplication formulas automatically from the curve equation. In the Python version, these formulas had to be implemented manually. SageMath’s EllipticCurve handles all the algebraic complexity internally, allowing us to focus on the mathematics rather than the implementation.
31.6 Elliptic Curves over Finite Fields#
When we work over a finite field \(\mathbb{F}_p\) (where \(p > 3\) is prime), all arithmetic is performed modulo \(p\). The curve equation becomes:
and the set of points \(E(\mathbb{F}_p)\) is finite. The following theorem gives a tight bound on how many points the curve can have.

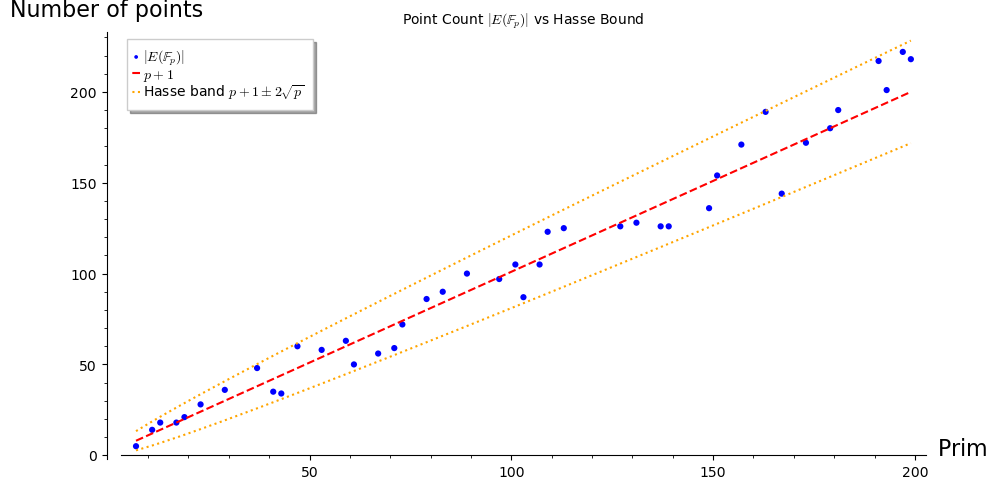

In other words, the number of points is approximately \(p + 1\), with an error of at most \(2\sqrt{p}\). The quantity \(t = p + 1 - \#E(\mathbb{F}_p)\) is called the trace of Frobenius.
Tip
Hasse’s theorem tells us that for large \(p\), the group \(E(\mathbb{F}_p)\) has roughly \(p\) elements. This is crucial for cryptographic applications: if we choose \(p \approx 2^{256}\), the group has approximately \(2^{256}\) elements, making brute-force attacks infeasible.
31.7 Creating Elliptic Curves in SageMath#
SageMath’s EllipticCurve constructor works seamlessly over any field. We simply specify the base field and the coefficients [a, b] for the short Weierstrass form \(y^2 = x^3 + ax + b\). This replaces the manual Python class from the Python version with a single line of code.
# Define an elliptic curve over F_97
F = GF(97)
E = EllipticCurve(F, [2, 3])
print(E)
print(f"Discriminant: {E.discriminant()}")
print(f"j-invariant: {E.j_invariant()}")
print(f"#E(F_97) = {E.cardinality()}")
Elliptic Curve defined by y^2 = x^3 + 2*x + 3 over Finite Field of size 97
Discriminant: 62
j-invariant: 36
#E(F_97) = 100
31.8 Verifying Curve Membership#
SageMath can enumerate all rational points on a curve over a finite field. Let us list them and verify membership.
# Enumerate all points on E(F_97)
E = EllipticCurve(GF(97), [2, 3])
pts = E.points()
print(f"All {len(pts)} points satisfy the curve equation (by construction).")
print(f"\nFirst 10 points:")
for P in pts[:10]:
print(f" {P}")
# Verify a few points manually
print(f"\nSample verifications on E: y^2 = x^3 + 2x + 3 (mod 97):")
for P in pts[1:8]:
x, y = P.xy()
lhs = y^2 % 97
rhs = (x^3 + 2*x + 3) % 97
print(f" P = ({int(x):2d}, {int(y):2d}) | y^2 mod 97 = {int(lhs):2d} | "
f"x^3+2x+3 mod 97 = {int(rhs):2d} | match: {lhs == rhs}")
All 100 points satisfy the curve equation (by construction).
First 10 points:
(0 : 1 : 0)
(0 : 10 : 1)
(0 : 87 : 1)
(1 : 43 : 1)
(1 : 54 : 1)
(3 : 6 : 1)
(3 : 91 : 1)
(4 : 47 : 1)
(4 : 50 : 1)
(10 : 21 : 1)
Sample verifications on E: y^2 = x^3 + 2x + 3 (mod 97):
P = ( 0, 10) | y^2 mod 97 = 3 | x^3+2x+3 mod 97 = 3 | match: True
P = ( 0, 87) | y^2 mod 97 = 3 | x^3+2x+3 mod 97 = 3 | match: True
P = ( 1, 43) | y^2 mod 97 = 6 | x^3+2x+3 mod 97 = 6 | match: True
P = ( 1, 54) | y^2 mod 97 = 6 | x^3+2x+3 mod 97 = 6 | match: True
P = ( 3, 6) | y^2 mod 97 = 36 | x^3+2x+3 mod 97 = 36 | match: True
P = ( 3, 91) | y^2 mod 97 = 36 | x^3+2x+3 mod 97 = 36 | match: True
P = ( 4, 47) | y^2 mod 97 = 75 | x^3+2x+3 mod 97 = 75 | match: True

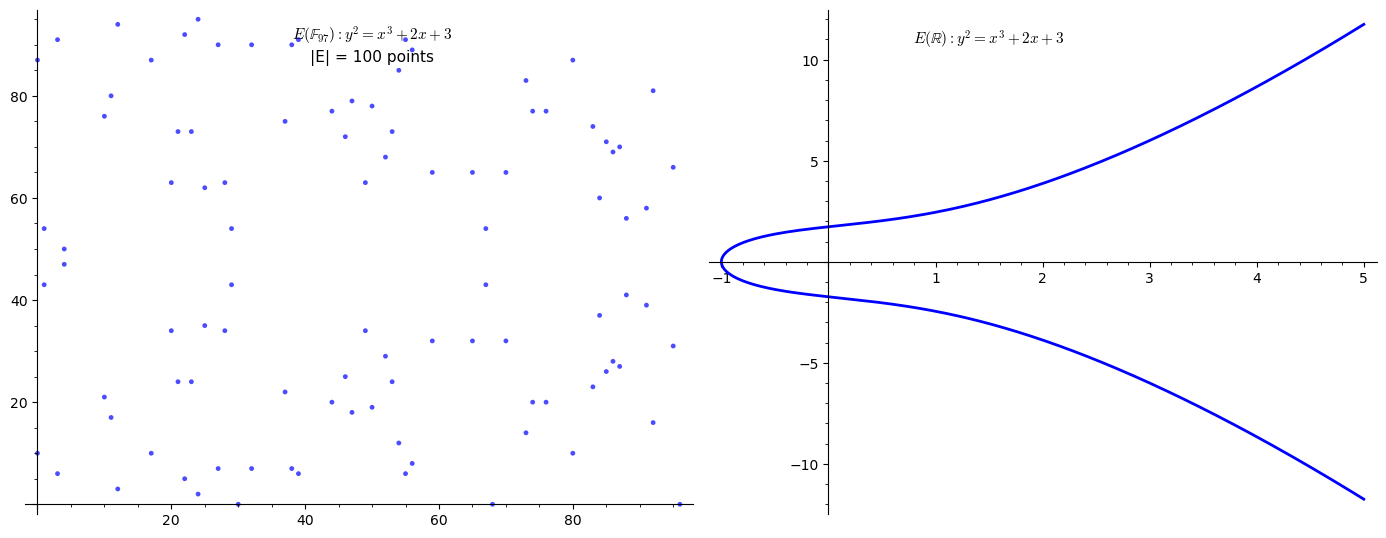

31.9 Plotting the Curve over \(\mathbb{F}_p\) and \(\mathbb{R}\)#
Over the reals, \(E\) is a smooth plane curve. Over \(\mathbb{F}_p\), it becomes a discrete scatter of points. Let us compare the two views for the same curve parameters using SageMath’s point() and EllipticCurve.plot().
# Plot E(F_97) as a scatter alongside E(R) using SageMath plotting
# Left: E(F_97)
E_Fp = EllipticCurve(GF(97), [2, 3])
pts = E_Fp.points()
affine_pts = [(ZZ(P.xy()[0]), ZZ(P.xy()[1])) for P in pts if P != E_Fp(0)]
p_scatter = point(affine_pts, color='blue', size=12, alpha=0.7)
p_scatter += text(
r"$E(\mathbb{F}_{97}): y^2 = x^3 + 2x + 3$" + f"\n|E| = {len(pts)} points",
(50, 90), fontsize=11, color='black'
)
# Right: E(R)
E_R = EllipticCurve(QQ, [2, 3])
p_real = E_R.plot(xmin=-2, xmax=5, ymin=-12, ymax=12, color='blue', thickness=2)
p_real += text(r"$E(\mathbb{R}): y^2 = x^3 + 2x + 3$", (1.5, 11), fontsize=11, color='black')
show(graphics_array([p_scatter, p_real], nrows=1, ncols=2), figsize=[14, 5.5])
31.10 Step-by-Step Point Addition over \(\mathbb{F}_p\)#
In SageMath, point addition is as simple as using the + operator. Let us pick two points on \(E(\mathbb{F}_{97})\) and demonstrate the elegance of SageMath’s built-in arithmetic, while also tracing the steps manually for comparison.
# Point addition in SageMath -- clean and simple
E = EllipticCurve(GF(97), [2, 3])
pts = E.points()
# Pick two distinct affine points
P = pts[1]
Q = pts[5]
print(f"Curve: {E}")
print(f"P = {P}")
print(f"Q = {Q}")
# SageMath addition -- just use +
R = P + Q
print(f"\nP + Q = {R}")
print(f"On curve? {R in E}")
# Manual step-by-step for comparison
x1, y1 = P.xy()
x2, y2 = Q.xy()
F = GF(97)
dx = F(x2 - x1)
dy = F(y2 - y1)
lam = dy / dx
x3 = lam^2 - x1 - x2
y3 = lam*(x1 - x3) - y1
print(f"\nManual step-by-step:")
print(f" dx = {dx}")
print(f" dy = {dy}")
print(f" lambda = dy/dx = {lam}")
print(f" x3 = lambda^2 - x1 - x2 = {x3}")
print(f" y3 = lambda*(x1 - x3) - y1 = {y3}")
print(f" Manual result: ({x3}, {y3})")
print(f" Matches SageMath: {E((x3, y3)) == R}")
Curve: Elliptic Curve defined by y^2 = x^3 + 2*x + 3 over Finite Field of size 97
P = (0 : 10 : 1)
Q = (3 : 6 : 1)
P + Q = (85 : 71 : 1)
On curve? True
Manual step-by-step:
dx = 3
dy = 93
lambda = dy/dx = 31
x3 = lambda^2 - x1 - x2 = 85
y3 = lambda*(x1 - x3) - y1 = 71
Manual result: (85, 71)
Matches SageMath: True
31.11 Verifying the Group Axioms#
We now computationally verify all five group axioms on a small curve \(E(\mathbb{F}_p)\). SageMath’s native point arithmetic via the + operator makes this verification concise and readable. For a small prime, we can exhaustively check associativity for all triples – a luxury we will not have for cryptographic-size primes.
# Use a smaller prime for exhaustive verification
E = EllipticCurve(GF(11), [1, 6])
pts = E.points()
n = len(pts)
print(f"Curve: {E}")
print(f"#E(F_11) = {n}")
print(f"Points: {pts}")
O = E(0) # point at infinity
# 1. CLOSURE: P + Q is on the curve for all P, Q
closure_ok = all((P + Q) in E for P in pts for Q in pts)
print(f"\n1. Closure: {'PASS' if closure_ok else 'FAIL'}")
# 2. IDENTITY: P + O = P for all P
identity_ok = all(P + O == P and O + P == P for P in pts)
print(f"2. Identity (O): {'PASS' if identity_ok else 'FAIL'}")
# 3. INVERSES: P + (-P) = O for all P
inverse_ok = all(P + (-P) == O for P in pts)
print(f"3. Inverses: {'PASS' if inverse_ok else 'FAIL'}")
# 4. COMMUTATIVITY: P + Q = Q + P for all P, Q
comm_ok = all(P + Q == Q + P for P in pts for Q in pts)
print(f"4. Commutativity: {'PASS' if comm_ok else 'FAIL'}")
# 5. ASSOCIATIVITY: (P + Q) + R = P + (Q + R) for all P, Q, R
assoc_ok = True
count = 0
for P in pts:
for Q in pts:
for R in pts:
if (P + Q) + R != P + (Q + R):
assoc_ok = False
print(f" ASSOC FAIL: P={P}, Q={Q}, R={R}")
count += 1
print(f"5. Associativity: {'PASS' if assoc_ok else 'FAIL'} ({count} triples checked)")
Curve: Elliptic Curve defined by y^2 = x^3 + x + 6 over Finite Field of size 11
#E(F_11) = 13
Points: [(0 : 1 : 0), (2 : 4 : 1), (2 : 7 : 1), (3 : 5 : 1), (3 : 6 : 1), (5 : 2 : 1), (5 : 9 : 1), (7 : 2 : 1), (7 : 9 : 1), (8 : 3 : 1), (8 : 8 : 1), (10 : 2 : 1), (10 : 9 : 1)]
1. Closure: PASS
2. Identity (O): PASS
3. Inverses: PASS
4. Commutativity: PASS
5. Associativity: PASS (2197 triples checked)
31.12 Scalar Multiplication and the Double-and-Add Algorithm#
Given a point \(P\) and a positive integer \(k\), the scalar multiple \(kP\) is defined as:
Computing this naively requires \(k - 1\) additions, which is infeasible when \(k \approx 2^{256}\). The double-and-add algorithm (analogous to square-and-multiply for modular exponentiation) computes \(kP\) in \(O(\log k)\) group operations by processing the binary representation of \(k\).
In SageMath, scalar multiplication is built in: simply write k * P.
# Scalar multiplication in SageMath -- just use k * P
E = EllipticCurve(GF(97), [2, 3])
pts = E.points()
P = pts[1]
print(f"Curve: {E}")
print(f"Base point P = {P}")
print(f"\nScalar multiples of P:")
print(f"{'k':>4s} {'kP':>30s} {'on curve?':>10s}")
print("-" * 50)
for k in range(1, 20):
kP = k * P
on_curve = kP in E
print(f"{int(k):4d} {str(kP):>30s} {str(on_curve):>10s}")
# Find the order of P using SageMath's built-in method
order_P = P.order()
n_E = E.cardinality()
print(f"\nOrder of P: {order_P}")
print(f"#E(F_97) = {n_E}")
print(f"Order of P divides #E? {n_E % order_P == 0}")
Curve: Elliptic Curve defined by y^2 = x^3 + 2*x + 3 over Finite Field of size 97
Base point P = (0 : 10 : 1)
Scalar multiples of P:
k kP on curve?
--------------------------------------------------
1 (0 : 10 : 1) True
2 (65 : 32 : 1) True
3 (23 : 24 : 1) True
4 (52 : 68 : 1) True
5 (88 : 56 : 1) True
6 (95 : 66 : 1) True
7 (10 : 76 : 1) True
8 (84 : 37 : 1) True
9 (11 : 80 : 1) True
10 (80 : 10 : 1) True
11 (17 : 87 : 1) True
12 (74 : 20 : 1) True
13 (87 : 70 : 1) True
14 (46 : 72 : 1) True
15 (53 : 24 : 1) True
16 (92 : 81 : 1) True
17 (1 : 43 : 1) True
18 (21 : 73 : 1) True
19 (85 : 26 : 1) True
Order of P: 50
#E(F_97) = 100
Order of P divides #E? True
31.13 Tracing the Double-and-Add Algorithm#
While SageMath handles scalar multiplication internally, it is instructive to trace the double-and-add algorithm step by step to understand the efficiency gain.
# Trace the right-to-left double-and-add algorithm
E = EllipticCurve(GF(97), [2, 3])
pts = E.points()
P = pts[1]
k = 53
print(f"Computing {k} * P where P = {P}")
print(f"Binary representation of {k}: {bin(k)}")
print(f"Binary digits (MSB first): {[int(b) for b in bin(k)[2:]]}")
print()
O = E(0)
result = O
addend = P
k_copy = k
step = 0
print(f"{'Step':>4s} {'Bit':>3s} {'Action':>15s} {'Result':>30s} {'Addend':>30s}")
print("-" * 90)
while k_copy > 0:
bit = k_copy & 1
if bit:
result = result + addend
action = "add"
else:
action = "skip"
print(f"{int(step):4d} {int(bit):3d} {action:>15s} {str(result):>30s} {str(addend):>30s}")
addend = 2 * addend
k_copy >>= 1
step += 1
print(f"\nFinal result: {k}*P = {result}")
print(f"Verification: {k * P}")
print(f"Match: {result == k * P}")
print(f"\nTotal group operations: {step} doubles + {bin(k).count('1')} adds")
print(f"Naive method would require {k - 1} additions")
Computing 53 * P where P = (0 : 10 : 1)
Binary representation of 53: 0b110101
Binary digits (MSB first): [1, 1, 0, 1, 0, 1]
Step Bit Action Result Addend
------------------------------------------------------------------------------------------
0 1 add (0 : 10 : 1) (0 : 10 : 1)
1 0 skip (0 : 10 : 1) (65 : 32 : 1)
2 1 add (88 : 56 : 1) (52 : 68 : 1)
3 0 skip (88 : 56 : 1) (84 : 37 : 1)
4 1 add (47 : 79 : 1) (92 : 81 : 1)
5 1 add (23 : 24 : 1) (21 : 24 : 1)
Final result: 53*P = (23 : 24 : 1)
Verification: (23 : 24 : 1)
Match: True
Total group operations: 6 doubles + 4 adds
Naive method would require 52 additions
31.14 The Elliptic Curve Discrete Logarithm Problem (ECDLP)#
The best known algorithms for the general ECDLP on a well-chosen curve run in \(O(\sqrt{n})\) time (e.g., Pollard’s rho algorithm). There is no known sub-exponential algorithm (unlike the ordinary DLP in \(\mathbb{F}_p^*\), which can be solved in sub-exponential time via the number field sieve). This is the fundamental reason ECC can use shorter keys than RSA or classical Diffie-Hellman.
Warning
Not all elliptic curves are suitable for cryptography. Curves susceptible to the MOV attack (embedding degree too small), anomalous curves (\(\#E(\mathbb{F}_p) = p\)), or curves with other special structure can have their ECDLP solved efficiently. Standardized curves (NIST P-256, Curve25519, etc.) are carefully chosen to avoid these pitfalls.
# ECDLP demonstration with SageMath
E = EllipticCurve(GF(97), [2, 3])
n_E = E.cardinality()
# Find a generator (point with maximal order)
G = None
for candidate in E.points():
if candidate.order() == n_E:
G = candidate
break
if G is None:
# Group may not be cyclic; find point with largest order
G = max(E.points(), key=lambda P: P.order())
print(f"Base point G = {G}, order = {G.order()}")
# Choose a secret scalar and compute Q = kG
secret_k = 42
Q = secret_k * G
print(f"\nSecret k = {secret_k}")
print(f"Public Q = kG = {Q}")
# SageMath can solve the discrete log on small curves
# Using the built-in discrete_log method
k_found = G.discrete_log(Q)
print(f"\nSageMath discrete_log finds: k = {k_found}")
print(f"Verification: {k_found * G == Q}")
print(f"\nFor a 256-bit curve, brute force requires ~2^256 operations.")
print(f"Pollard's rho requires ~2^128 operations -- still infeasible.")
Base point G = (0 : 10 : 1), order = 50
Secret k = 42
Public Q = kG = (84 : 60 : 1)
SageMath discrete_log finds: k = 42
Verification: True
For a 256-bit curve, brute force requires ~2^256 operations.
Pollard's rho requires ~2^128 operations -- still infeasible.
/var/folders/z7/wp7m8p7x1250jzvklw5z24mm0000gn/T/ipykernel_27462/1454447375.py:26: DeprecationWarning: The syntax P.discrete_log(Q) is being replaced by Q.log(P) to make the argument ordering of logarithm methods in Sage uniform. Please update your code.
See https://github.com/sagemath/sage/issues/37150 for details.
k_found = G.discrete_log(Q)
31.15 Verifying Hasse’s Theorem#
We now verify Hasse’s bound \(|\#E(\mathbb{F}_p) - p - 1| \leq 2\sqrt{p}\) by counting points on a fixed curve for several primes. SageMath’s cardinality() uses the efficient Schoof-Elkies-Atkin algorithm internally.
# Count points on y^2 = x^3 + x + 1 for various primes
primes_list = [7, 11, 13, 17, 19, 23, 29, 31, 37, 41, 43, 47, 53, 59, 61, 67,
71, 73, 79, 83, 89, 97, 101, 103, 107, 109, 113, 127, 131, 137,
139, 149, 151, 157, 163, 167, 173, 179, 181, 191, 193, 197, 199]
a_coeff, b_coeff = 1, 1
valid_primes = []
counts = []
traces_list = []
for p in primes_list:
try:
E_tmp = EllipticCurve(GF(p), [a_coeff, b_coeff])
n = E_tmp.cardinality()
valid_primes.append(p)
counts.append(n)
traces_list.append(p + 1 - n)
except ArithmeticError:
pass # singular curve for this prime
# Plot: point count vs p+1 with Hasse band
p_points = point(list(zip(valid_primes, counts)), color='blue', size=20,
legend_label=r'$|E(\mathbb{F}_p)|$')
p_center = line([(valid_primes[0], valid_primes[0]+1),
(valid_primes[-1], valid_primes[-1]+1)],
color='red', linestyle='dashed', thickness=1.5,
legend_label='$p + 1$')
# Hasse band
upper = [(p, p + 1 + 2*sqrt(RR(p))) for p in valid_primes]
lower = [(p, p + 1 - 2*sqrt(RR(p))) for p in valid_primes]
p_band_u = line(upper, color='orange', linestyle='dotted', thickness=1.5,
legend_label=r'Hasse band $p+1 \pm 2\sqrt{p}$')
p_band_l = line(lower, color='orange', linestyle='dotted', thickness=1.5)
p_plot = p_points + p_center + p_band_u + p_band_l
p_plot.axes_labels(['Prime $p$', 'Number of points'])
show(p_plot, figsize=[10, 5], title=r"Point Count $|E(\mathbb{F}_p)|$ vs Hasse Bound")
# Print table
print(f"{'p':>5s} {'#E':>5s} {'p+1':>5s} {'trace':>6s} {'2sqrt(p)':>9s} {'Hasse OK?':>10s}")
print("-" * 48)
for p_val, c_val, t_val in zip(valid_primes, counts, traces_list):
bound = 2 * sqrt(RR(p_val))
ok = abs(t_val) <= bound
print(f"{int(p_val):5d} {int(c_val):5d} {int(p_val+1):5d} {int(t_val):6d} {float(bound):9.2f} {'YES' if ok else 'NO':>10s}")
p #E p+Integer(1) trace 2sqrt(p) Hasse OK?
------------------------------------------------
7 5 8 3 5.29 YES
11 14 12 -2 6.63 YES
13 18 14 -4 7.21 YES
17 18 18 0 8.25 YES
19 21 20 -1 8.72 YES
23 28 24 -4 9.59 YES
29 36 30 -6 10.77 YES
37 48 38 -10 12.17 YES
41 35 42 7 12.81 YES
43 34 44 10 13.11 YES
47 60 48 -12 13.71 YES
53 58 54 -4 14.56 YES
59 63 60 -3 15.36 YES
61 50 62 12 15.62 YES
67 56 68 12 16.37 YES
71 59 72 13 16.85 YES
73 72 74 2 17.09 YES
79 86 80 -6 17.78 YES
83 90 84 -6 18.22 YES
89 100 90 -10 18.87 YES
97 97 98 1 19.70 YES
101 105 102 -3 20.10 YES
103 87 104 17 20.30 YES
107 105 108 3 20.69 YES
109 123 110 -13 20.88 YES
113 125 114 -11 21.26 YES
127 126 128 2 22.54 YES
131 128 132 4 22.89 YES
137 126 138 12 23.41 YES
139 126 140 14 23.58 YES
149 136 150 14 24.41 YES
151 154 152 -2 24.58 YES
157 171 158 -13 25.06 YES
163 189 164 -25 25.53 YES
167 144 168 24 25.85 YES
173 172 174 2 26.31 YES
179 180 180 0 26.76 YES
181 190 182 -8 26.91 YES
191 217 192 -25 27.64 YES
193 201 194 -7 27.78 YES
197 222 198 -24 28.07 YES
199 218 200 -18 28.21 YES
31.16 Group Structure and Point Orders#
The group \(E(\mathbb{F}_p)\) is always isomorphic to \(\mathbb{Z}/n_1\mathbb{Z} \times \mathbb{Z}/n_2\mathbb{Z}\) for some \(n_1, n_2\) with \(n_2 \mid n_1\). In many cases (especially for cryptographic curves), \(n_2 = 1\), meaning the group is cyclic. A point \(G\) whose order equals \(\#E(\mathbb{F}_p)\) is called a generator of the group.
SageMath can compute point orders directly with P.order() and the full group structure with E.abelian_group().
# Group structure analysis using SageMath
E = EllipticCurve(GF(97), [2, 3])
pts = E.points()
n_E = E.cardinality()
print(f"Curve: {E}")
print(f"#E(F_97) = {n_E}")
print(f"Group structure: {E.abelian_group()}")
# Compute order of each point
from collections import Counter
orders = {}
generators = []
for P in pts:
ord_P = P.order()
orders[str(P)] = ord_P
if ord_P == n_E:
generators.append(P)
# Distribution of orders
order_counts = Counter(orders.values())
print(f"\nOrder distribution:")
for order in sorted(order_counts.keys()):
print(f" Order {int(order):4d}: {int(order_counts[order]):3d} points")
print(f"\nNumber of generators (order = {n_E}): {len(generators)}")
if generators:
print(f"Sample generators: {generators[:5]}")
# Factor the group order
print(f"\nFactorization of #E = {n_E}: {factor(n_E)}")
# Plot order distribution
order_vals = sorted(order_counts.keys())
order_freqs = [order_counts[o] for o in order_vals]
p = bar_chart(order_freqs, color='steelblue')
show(p, figsize=[8, 4],
title=f"Distribution of Point Orders on $E(\\mathbb{{F}}_{{97}})$")
Curve: Elliptic Curve defined by y^2 = x^3 + 2*x + 3 over Finite Field of size 97
#E(F_97) = 100
Group structure: Additive abelian group isomorphic to Z/50 + Z/2 embedded in Abelian group of points on Elliptic Curve defined by y^2 = x^3 + 2*x + 3 over Finite Field of size 97
Order distribution:
Order 1: 1 points
Order 2: 3 points
Order 5: 4 points
Order 10: 12 points
Order 25: 20 points
Order 50: 60 points
Number of generators (order = 100): 0
Factorization of #E = 100: 2^2 * 5^2
31.17 Singular Curves: A Cautionary Note#
When the discriminant \(\Delta = -16(4a^3 + 27b^2)\) vanishes, the curve is singular – it has a cusp or a node. Singular curves do not form a group in the usual sense, and their “discrete logarithm problem” can be solved efficiently. This is why the discriminant check is critical.
# Plot singular curves over R using SageMath's implicit_plot
var('x, y')
# Cusp: y^2 = x^3 (a=0, b=0, discriminant = 0)
p_cusp = implicit_plot(y^2 - x^3, (x, -1, 3), (y, -4, 4),
color='red', linewidth=2)
p_cusp += point([(0, 0)], color='black', size=60)
p_cusp += text("Cusp", (0.5, 0.8), fontsize=12, color='black')
p_cusp += text(r"$y^2 = x^3$ ($\Delta = 0$)", (1, 3.5), fontsize=11, color='red')
# Node: y^2 = (x-1)^2(x+2) has a node at x=1
p_node = implicit_plot(y^2 - (x-1)^2*(x+2), (x, -2.5, 3), (y, -4, 4),
color='red', linewidth=2)
p_node += point([(1, 0)], color='black', size=60)
p_node += text("Node", (1.5, 0.8), fontsize=12, color='black')
p_node += text(r"$y^2 = (x-1)^2(x+2)$ ($\Delta = 0$)", (0.5, 3.5), fontsize=11, color='red')
show(graphics_array([p_cusp, p_node], nrows=1, ncols=2), figsize=[12, 5])
# Show that SageMath correctly rejects singular curves
for a_test, b_test in [(0, 0), (-3, 2)]:
try:
E_bad = EllipticCurve(GF(97), [a_test, b_test])
print(f"a={a_test}, b={b_test}: accepted (unexpected)")
except ArithmeticError as e:
print(f"a={a_test}, b={b_test}: correctly rejected -- {e}")
a=0, b=0: correctly rejected -- y^2 = x^3 defines a singular curve
a=-3, b=2: correctly rejected -- y^2 = x^3 + 94*x + 2 defines a singular curve
31.18 Comparing Curves: Point Counts and the Hasse Band#
Different curve parameters \((a, b)\) yield different group orders over the same field. Let us survey several curves over \(\mathbb{F}_{97}\) and see how their point counts distribute within the Hasse band.
# Survey point counts for various curves over F_97
p = 97
hasse_center = p + 1
print(f"p = {p}")
print(f"Hasse band: [{float(p + 1 - 2*sqrt(RR(p))):>.1f}, {float(p + 1 + 2*sqrt(RR(p))):>.1f}]")
print(f"Center: p + 1 = {hasse_center}")
print()
curve_orders = []
for a_val in range(0, 10):
for b_val in range(1, 10):
try:
E_tmp = EllipticCurve(GF(p), [a_val, b_val])
n = E_tmp.cardinality()
curve_orders.append(n)
except ArithmeticError:
continue
# Plot histogram of point counts
min_o, max_o = min(curve_orders), max(curve_orders)
hist_data = [curve_orders.count(v) for v in range(min_o, max_o + 1)]
p_hist = bar_chart(hist_data, color='steelblue')
show(p_hist, figsize=[10, 5],
title=f"Distribution of Point Counts for Various Curves over $\\mathbb{{F}}_{{{p}}}$")
print(f"Total non-singular curves tested: {len(curve_orders)}")
print(f"Min #E = {min(curve_orders)}, Max #E = {max(curve_orders)}")
print(f"All within Hasse bound: "
f"{all(abs(n - hasse_center) <= 2*sqrt(RR(p)) for n in curve_orders)}")
p = 97
Hasse band: [78.3, 117.7]
Center: p + 1 = 98
Total non-singular curves tested: 89
Min #E = 79, Max #E = 117
All within Hasse bound: True
31.19 Exercises#
31.20 Summary#
In this chapter we established the mathematical foundations of elliptic curve arithmetic:
An elliptic curve in short Weierstrass form is \(y^2 = x^3 + ax + b\) with \(4a^3 + 27b^2 \neq 0\) (non-singular).
The points on \(E\) over a field \(K\), together with a point at infinity \(\mathcal{O}\), form an abelian group under the chord-and-tangent addition law.
Over a finite field \(\mathbb{F}_p\), Hasse’s theorem constrains the group order: \(|\#E(\mathbb{F}_p) - p - 1| \leq 2\sqrt{p}\).
The scalar multiplication \(kP\) is computed efficiently via the double-and-add algorithm in \(O(\log k)\) group operations.
The Elliptic Curve Discrete Logarithm Problem (ECDLP) – given \(G\) and \(Q = kG\), find \(k\) – is believed to be computationally intractable for well-chosen curves, forming the basis of modern ECC.
SageMath’s native EllipticCurve replaces the manual Python implementation with elegant, concise operations: E = EllipticCurve(GF(p), [a, b]), P + Q, k * P, P.order(), E.cardinality(), and E.abelian_group().
Tip
Looking ahead. In subsequent chapters, we will use the group law developed here to build cryptographic protocols: ECDH (key exchange), ECDSA (digital signatures), and EdDSA (Edwards-curve signatures). We will also study specialized attacks on poorly chosen curves.
31.21 References#
V. S. Miller, “Use of Elliptic Curves in Cryptography,” Advances in Cryptology – CRYPTO ‘85, LNCS 218, Springer, 1986, pp. 417–426.
N. Koblitz, “Elliptic Curve Cryptosystems,” Mathematics of Computation, vol. 48, no. 177, 1987, pp. 203–209.
J. H. Silverman, The Arithmetic of Elliptic Curves, 2nd edition, Graduate Texts in Mathematics 106, Springer, 2009.
L. C. Washington, Elliptic Curves: Number Theory and Cryptography, 2nd edition, CRC Press, 2008.
H. Hasse, “Zur Theorie der abstrakten elliptischen Funktionenkorper,” Journal fur die reine und angewandte Mathematik, 1936.
D. Hankerson, A. Menezes, S. Vanstone, Guide to Elliptic Curve Cryptography, Springer, 2004.
W. Stein et al., SageMath, the Sage Mathematics Software System, https://www.sagemath.org.
